Horizontal Wrapping Machine

Automatic Online Pallet Wrapping Machine - Professional Packaging Auxiliary for Production Lines. Fit for wrapping pallets, cartons, metal parts and plastic products, realize seamless connection with assembly lines, fast wrapping speed and neat wrapping effect. Anti-slip and stable packaging, protect goods from damage during transportation, suitable for logistics, electronics, furniture and building materials manufacturing. #OnlinePalletWrapper #ProductionLinePackaging #LogisticsPackagingEquipment

1，Buyer's Product Specifications: Product dimensions: width 600mm, height 40mm, length 700-3000mm, weight approximately 100kg.

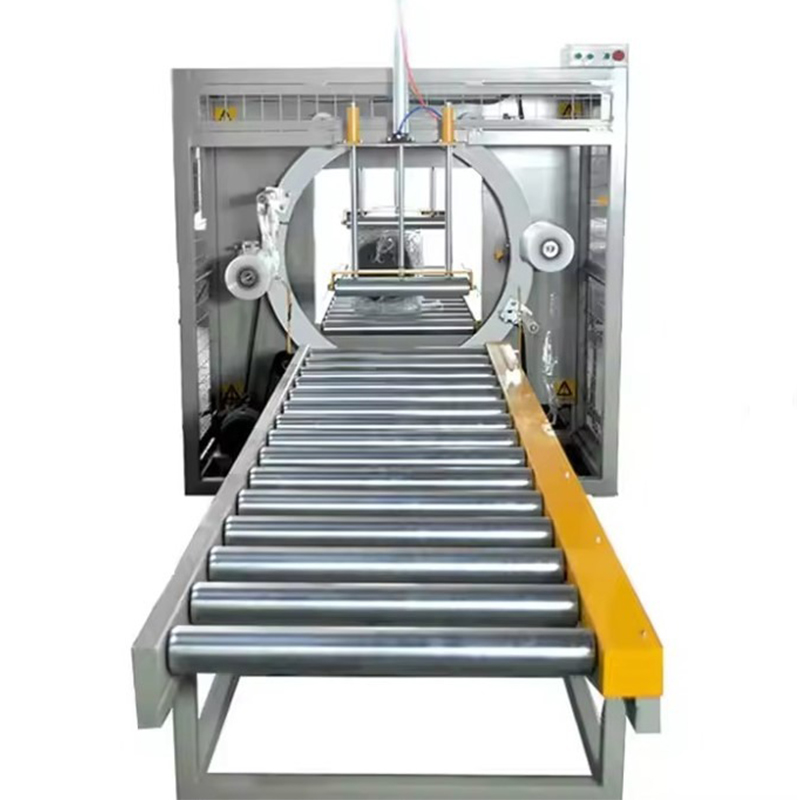

2，Applicable Packaging Equipment: 1. Horizontal Winding Packaging Machine Model: S-800F. Note: Product images are for reference only; actual product specifications may vary.

3，Product Introduction: This innovative packaging equipment is specifically designed for metal profile manufacturers. It enhances logistics efficiency, minimizes transportation losses, and offers dustproof, rust-proof features while reducing packaging costs. An ideal choice for elevating product packaging standards.

Basic features: frequency conversion control.

4，Select manual or automatic mode.

5，The frequency conversion speed control allows you to adjust the overlap of the packaging tape as needed.

6，The speed of the rotating ring is adjustable.

7，Enter the time to stop automatically.

8，The tension of the tape is adjustable both at the time of bringing in and at the time of bringing out.

9，The independent control cabinet improves the operability and maintainability.

10，◆Key Specifications: Technical drawings and data will be provided during later stages. Packaging length: 700-3000mm. Transport speed: 5m-10/min (customizable). Conveyor line length: 3.5m × 2 units. Ring rotation speed: 100r/min. Conveyor surface height: Approximately 750mm (customizable). Effective load capacity: 60kg/m². Lamination range: 0-70%. Total power: Approximately 3kW. Voltage/frequency: 3×380V/60Hz. Packaging material: Wrap film.
